1. Introduction – Why Cooling Matters
Mobile SoCs—like Apple’s A‑series chips—generate significant heat during sustained heavy tasks such as AAA gaming or on‑device AI. Heat leads to thermal throttling, undermines performance consistency, affects battery lifespan, and makes devices uncomfortable in-hand. To counter this, many Android flagships use vapor‑chamber cooling. Now, rumors suggest Apple is finally following suit with iPhone 17 Pro.
 |

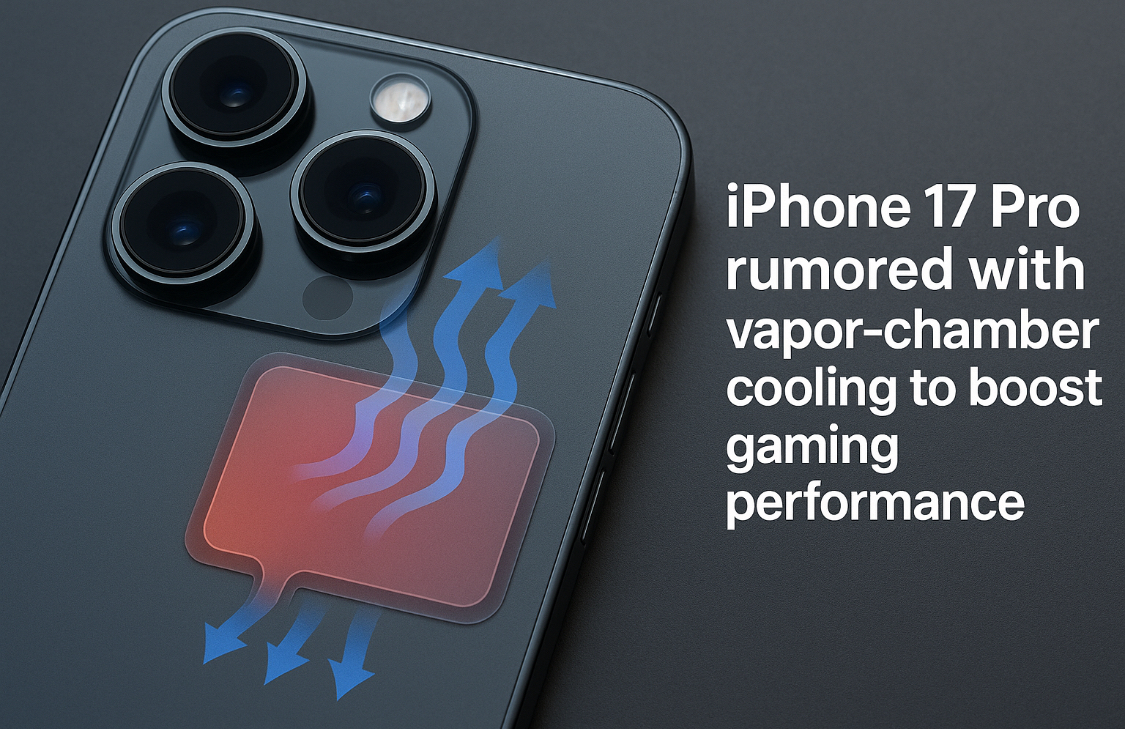

| iPhone 17 Pro rumored with vapor‑chamber cooling to boost gaming performance |
2. What’s a Vapor‑Chamber Cooling System?
• Core concept: sealed metal vessel (usually copper), containing a small amount of liquid. Under heat, it vaporizes, spreads to cooler zones, condenses back to liquid, and cycles—efficiently spreading heat across a larger surface.
• Advantages: Offers ~3–5× better thermal conductivity than graphite sheets.
• Engineering hurdles: Very tight thickness constraints, durable welding, precise internal wick design (composite wicks integrating capillary & mesh layers), and high-grade thermal interface materials. Apple may use T‑interface vacuum sealing and diamond/metal‑alloy pastes to minimize thermal resistance.
3. Why Apple Might Adopt It in iPhone 17 Pro
• A19 Pro chip: Built on advanced 3 nm process, delivering ~20% per‑cycle performance gains —but increased power necessitates better thermal management.
• Sustained performance goal: Leaks suggest the iPhone 17 Pro/Pro Max will deliver near‑constant peak performance during extended high-load tasks, thanks to vapor‑chamber technology.
• Competitive parity: Android flagships (e.g., Galaxy S25 Ultra) already integrate this tech; Apple would close the performance and reliability gap.
4. What the Rumors Say
Here’s a breakdown of prominent leaks:
Leaker / Outlet | Claim | Detail & Caveats |
Ming‑Chi Kuo (Aug 2024) | Vapor chamber likely exclusive to Pro/Pro Max | Suggests standard 17 might lack it |
Instant Digital (Weibo) | Confirms Pro and Pro Max both get it; no throttling under heavy use | |
Majin Bu (photo leak) | Shared alleged copper thermal plate image | But has had mixed accuracy |
Tom’s Guide, MacRumors, iClarified | Note creation address critical overheating in Pro variants, expand chamber over camera module | |
Rokform technical blog | Specifies multi‑axis (3D) chamber weaving around internal hot spots; potential liquid‑metal TIM |
5. Table (Middle) – Vapor‑Chamber vs Traditional Cooling
Cooling Method | Mechanism | Thermal Conductivity | Thickness | Cost/Complexity | Performance Benefit |
Graphite Sheet | Passive conduction via graphite pasted layers | Baseline | ~0.1–0.2 mm | Low (used in iPhone 16/16 Pro) | Suffices for light tasks; throttles under heavy load |
Vapor Chamber | Liquid‑vapor cycling within sealed metal plate | ~3–5× graphite | ~0.5–1.0 mm | High (precision assembly, material quality) | Sustained peak CPU/GPU; cooler overall temperature |
Graphite + Vapor Hybrid | Graphite outside chamber for supplemental spread | Slightly better | ~0.6–1.2 mm | Very high (dual‑structure) | Combined benefits; may cover wider internal zones |
Thickness figures are estimates from teardown analysis of Android flagship vapor‑chamber phones.
6. Gaming & Heavy Load Scenarios
• Thermal throttling in modern iPhones leads to FPS drops and clock-speed reductions after ~5–10 min in AAA mobile titles like Genshin Impact or Apex Legends Mobile.
• With vapor chambers, performance could remain consistent for 30+ minute sessions.
• Similar results seen in Samsung Galaxy S25 Ultra and ASUS ROG models—vapor‑cooled units maintain ~10–20% higher sustained fps under long loads.
7. Battery Life & Device Comfort
• Cooler internals reduce voltage droop and waste, potentially improving energy efficiency and extending battery longevity.
• Surface temperature remains lower, improving grip and comfort during handheld use or charging.
8. Engineering & Supply‑Chain Sources
• Apple’s move may require new copper‑based part lines, precision wick fabricators, and tighter tolerances.
• Environmental design: Apple focuses on recyclability—chamber likely designed with fewer adhesives and more modularity (e.g., clip/screw assembly, eco-friendly fluids).
9. Broader Apple & Industry Implications
• Vapor chambers may become standard across Pro models—or even eventually all models.
• Could unlock future features: real‑time AI inference, AR/VR headset compatibility, and even clip‑on cooling accessories.
• Paves way for more aggressive chip tuning in future releases.
10. Outlook
Apple appears set to make the iPhone 17 Pro/Pro Max its first smartphones to adopt vapor‑chamber cooling, a major shift in thermal design. With support for sustained peak performance, cooler temps, improved gaming, and durability benefits, this marks a significant evolution in iPhone design—mirroring and potentially outpacing Android. Keep in mind all details are sourced from leaks and rumors; we’ll get confirmation only at the official launch expected in September 2025.
